Crew Voice and Video Recording System for Locomotives.
Voice and Video Recording of cab, pantograph, and track ahead for Safety

Railway operations require a post facto investigation of operational incidents for safety audit. Optitech Crew Voice and Video Recording System (CVVRS) for Locomotives is a high-reliability black box recording system based on Optitech’s PICCU EN50155 Railway Compute Platform. Its embedded audio enhancement algorithms enhance human speech by upto 12 dB over a background machine noise as high as 85dB. CVVRS systems Video Analytics identifies hot spots in catenary line pantograph interaction through spark detection while the Driver Alertness Monitoring software ensures an alert plot preventing SPAD and drowsiness


ITS Product Capabilities

Cab & Track Video Recording
Cab video synchronized with voice for post-incident investigations. Track surveillance prevents SPAD.

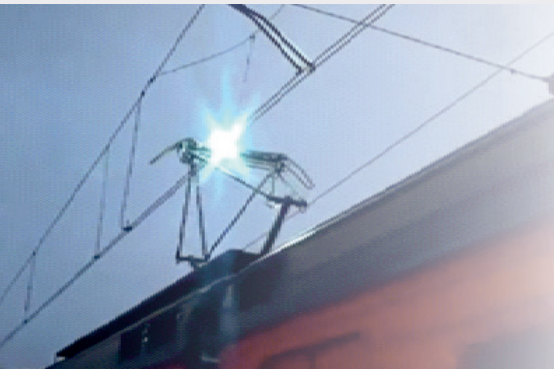

Pantograph Flashover Detection
AI detects flashover events and reports their geo-location to the Optitech Remote Monitoring Software.
AI-Enabled Speech Enhancement
Background noise reduced by up to 7dB and speech enhanced by up to 15dB for crystal-clear voice.
100% Redundant Mode Recording
Fault-tolerant dual-NVR system records continuously even if one NVR fails.
Interfacing to CHMD
Connects to CHMD to save last 30 minutes of video and audio in the crash-hardened recorder.
VMS Software Integration
Remote health monitoring, automated footage sync, flashover alerts, and drowsiness reporting.
Certifications
EN50155, EN45545 HL3, IEC certified for railway-grade reliability and safety.
Download Broucher

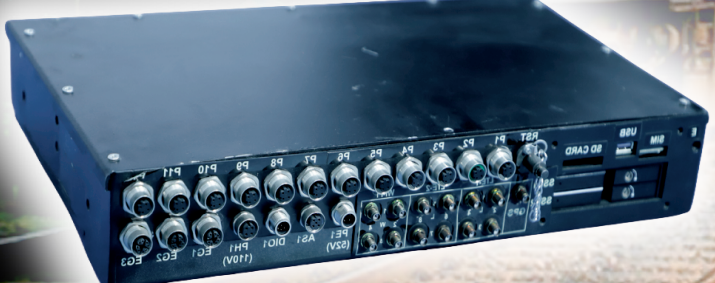

NVR-Hardware-Features

• FanlessX86 compute system sealed to IP54.

• Standard 1930 rack mountable.

• Interfacing to 10.1″ touch Screen HM (optional)

• Inbuilt GNSS and LTE module.

• Dual SSD with anti-theft protection.

• Wi-fi capable for wayside footage synchronization

• Integrated 802.3/at POE switch.

• Rugged in with M12 connectors as per BC-61076-2-101

• Inbuilt high-efficiency Power Supply for 48-136 V DC

• Efficiently runs Convoluted Neural Networks for real-time Video Analytics and enhancement







Arc Detection Reporting Workflow


• Use of Panto-facing camera of CVVRS.

• Live analysis of Panto Footage.

• Capture Panto-camera footage frames evidencing sparks.

• Geo-Tag images with GPS location, vehicle Speed

• Upload to the Optitech VMS server.

• Data Analysis to identify hot spots.

• Send live alerts to maintenance staff.

5 Product Layout
Network 18 Port
Network with Video Recorder (18 Port)
8-port network video recorder for seamless recording and monitoring of all connected cameras.
Network 16 Port
Network with Video Recorder (16 Port)
16-port network video recorder supporting multiple cameras for large-scale surveillance setups.
Cab Camera
Cab Camera
High-definition camera designed for in-cab monitoring to capture driver and cabin activity.
Front/Side/Pantograph Camera
Front / Side / Pantograph Camera
Robust cameras to monitor train exterior, pantograph, and track surroundings in real time.
Online VMS Software
Online VMS Software
Cloud-based VMS software for remote video access, playback, alerts, and health monitoring.
